2.3.9.4.1. Block [AttributeMapping(is3d)]

In the AttributeMapping(3D) block, you determine whether the PARTsolutions standard attributes are to be transferred to the CAD system and, if so, in which language(s).

  • Set the desired language under Attr_CopyFrom_01.

    • default: The attributes in the $CADENAS_LANGUAGE are transferred.

    • Specify the language (german, english, french, etc.): The standard attributes are transferred in the specified language.

      [Note]Note

      If there is no translation for an attribute in the specified language, no attribute is transferred (not even the one from the $CADENAS_LANGUAGE language).

    • No entry: No standard attributes are transferred. (To explicitly pass certain attributes, please see the information in the following sections)

    Possible values for language are:

    default,german,english,italian,french,spanish,portuguese,czech,slovak,hungarian,slovenian,dutch,danish,finnish,russian,japanese,korean,chinese,polish

    For copying attributes the parameters "var_exclude" and "var_visbile=1" can be used.

    "var_visible=1" at this place tells the interface that only visible attributes have to be processed

    With "var_exclude" you can assign certain attributes to an "Ignore" list.

    Examples:

    • Attr_CopyFrom_01=default,var_exclude=A,var_visbile=1

      The variable A is explicitly set to the ignore list.

    • Attr_CopyFrom_01(isCatalog(norm))=default,var_exclude=D,var_visbile=1

      The expression is only applied to the standards catalog.

  • Set the desired prefix under Attr_Prefix_01.

  • The keys Attr_Content_01 and Attr_Section_01 remain unchanged.

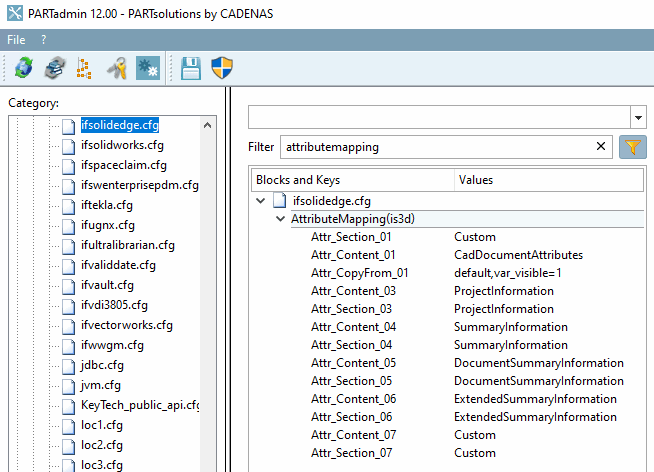

PARTsolutions: tabbed page "AttributeMapping(3D)"

PARTsolutions: tabbed page "AttributeMapping(3D)"

In Solid Edge, the attributes are displayed as standard attributes under Part properties-> User-defined tab page.

Solid Edge: tabbed page "User-defined"

Solid Edge: tabbed page "User-defined"
