Note

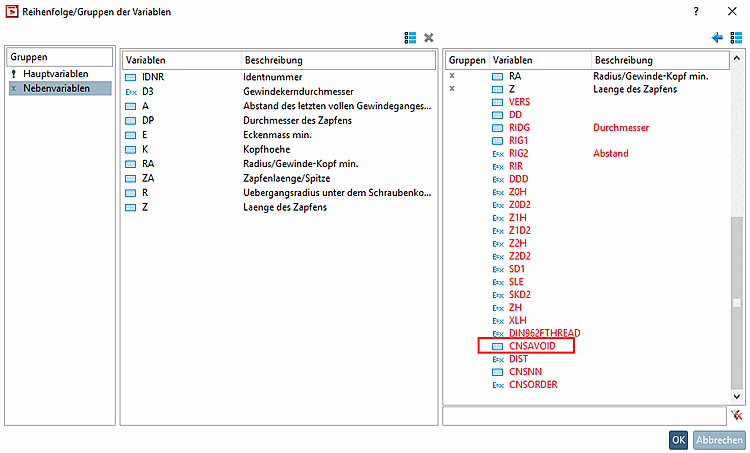

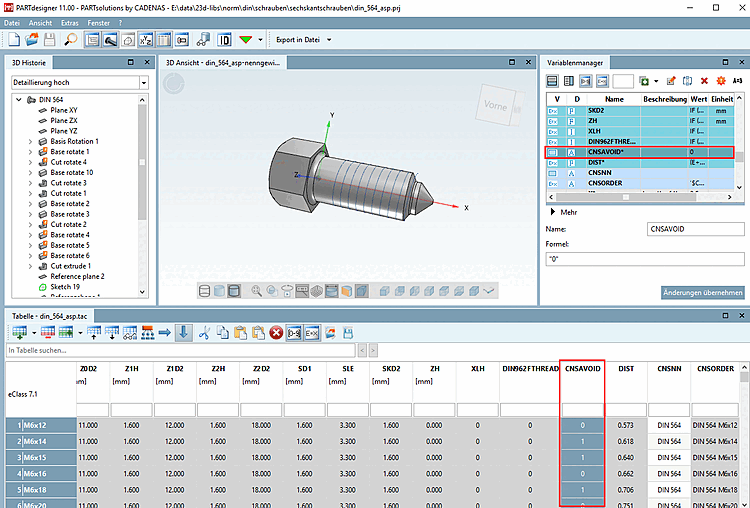

	As of V10 the marking of parts/lines to be avoided happens by an own variable CNSAVOID in the characteristic attribute table. The control via configuration file $CADENAS_DATA/datasetup/avoid_parts.cfg is no longer used!

In some Standards certain sizes are marked as to be avoided sometimes.

To show or hide these parts, use the PARTdataManager hide rows to be avoided [Hide Lines to Avoid] button . The button is deactivated by default so that all project rows are displayed. If you activate the button, rows marked with the icon are hidden.

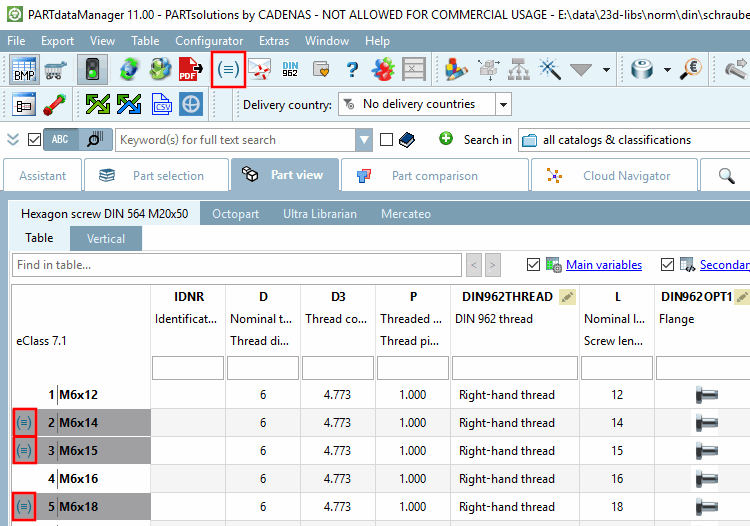

Hide rows to be avoided [Hide Lines to Avoid]: deactivated

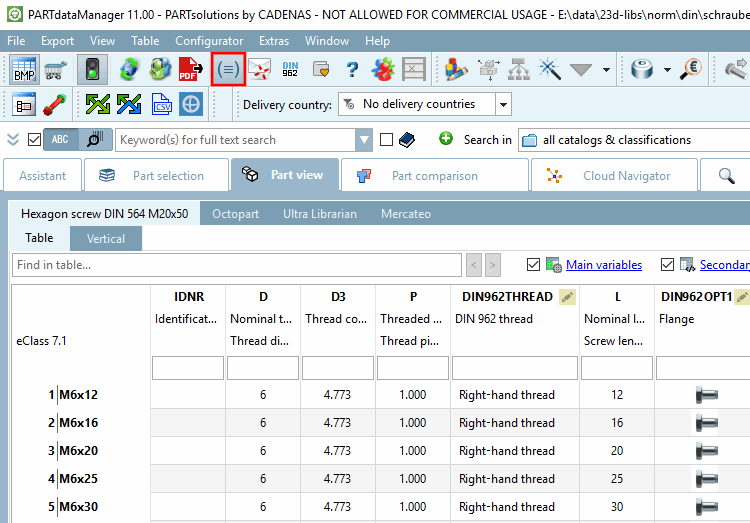

Hide lines to be avoided [Hide Lines to Avoid]: activated

In order to provide the functionality proceed as follows:

	Tip
	The following markup of parts complement each other: Parts to be replaced (see Section 1.6.3.2, “ replace_std.cfg ” in PARTsolutions Administration - Manual ) Parts to be avoided (description in the section in hand) Expired parts ( Section 5.9.2.12, “Menu item: Expiry date (End of Life) ”)
