7.6.2.12.6.2. Several intersecting chamfers/fillets and Blend feature in addition

[Note]Note

A combination (two or more ) of a chamfer/rounding [Chamfer/Fillet] created by cut extrusion (via sketch) + a chamfer/rounding [Chamfer/Fillet] created by the blend feature (context menu command Create new chamfer/rounding... [New Chamfer/Fillet...] ) can lead to errors and must be avoided (see following illustrations).

Of course, you can switch between different ways of creating chamfers/fillets within a model depending on the installation situation. The restriction only applies to directly intersecting edges.

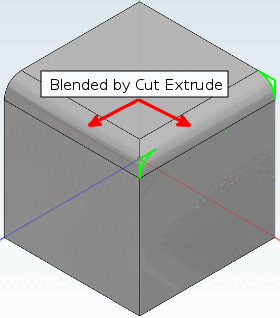

Chamfer/rounding [Chamfer/Fillet] created by cut extrusion

Chamfer/rounding [Chamfer/Fillet] created by cut extrusion

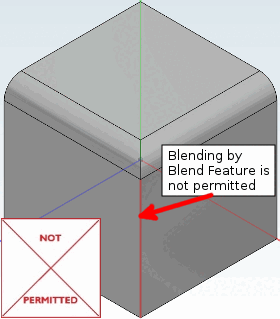

In this situation, using the Blend feature is not permitted for an intersecting edge.

In this situation, using the Blend feature is not permitted for an intersecting edge.

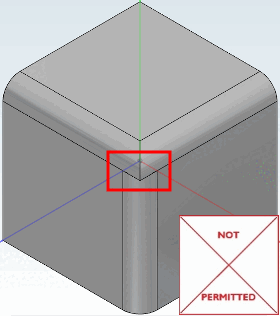

Faulty result would be:

Result – View 1

Result – View 1

Result – View 2

Result – View 2

[Note]Note

The combination of ONE chamfer/rounding [Chamfer/Fillet] created by cut extrusion (via sketch) + ONE chamfer/rounding [Chamfer/Fillet] created by the blend feature (context menu command Create new chamfer/rounding. [New Chamfer/Fillet...]..) would be allowed; whether it would make sense remains to be seen.

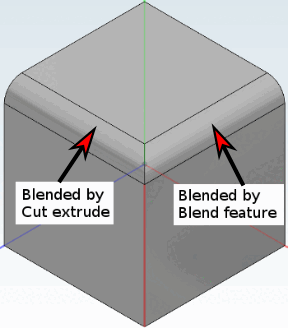

In this example the Blend feature had been applied first, then the Cut extrude.

In this example the Blend feature had been applied first, then the Cut extrude.
