1.3.10.3.2. Comparison operations

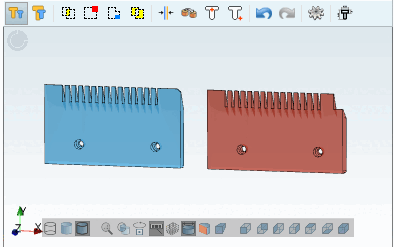

Following figure exemplarily shows parts to compare.

The figures show standard settings:

  • 1. Part blue

  • 2. Part red

  • Result yellow

In order to change settings click on .

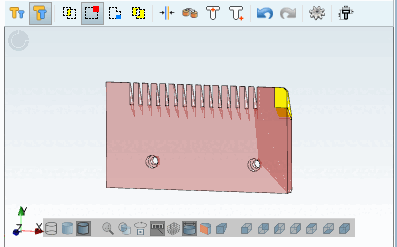

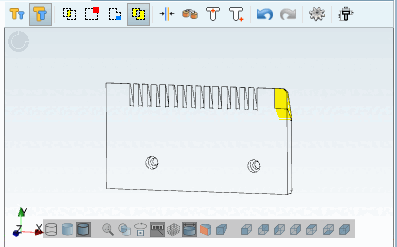

Difference 1-2

Difference: Part 1 minus part 2

Difference 2-1

Difference: Part 2 minus part 1

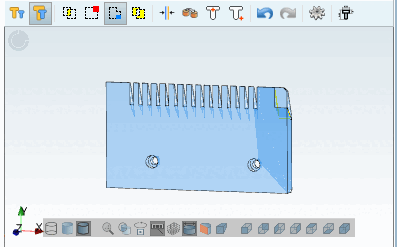

Smaller part (which is completely contained in the larger one) minus larger part results in nothing = no yellow coloring

Smaller part (which is completely contained in the larger one) minus larger part results in nothing = no yellow coloring

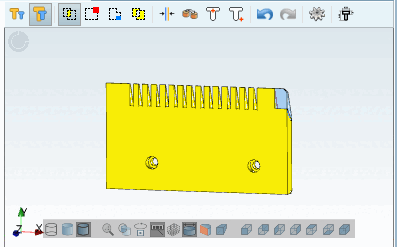

Symmetric difference

Sum of differences between part 1 and part 2

Combined quantity-intersection quantity

Shows the component areas in which the parts differ.

Intersection

Shows areas where parts are identic.
