3.1.16.2.4.  View menu
3.1.16.2.4.1. 2D derivation
3.1.16.2.4.2. Exploded view
3.1.16.2.4.3. Assembly structure
3.1.16.2.4.4. Recalc automatically

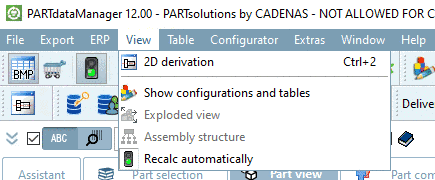

The toolbar view [View] contains the following buttons:

  • 2D deriv [2D derivation] ation: ...creates a two-dimensional derivation of the current 3D object.

  • Threads on/off

  • Exploded view

  • Assembly structure

  • Recalc automatically
