2.5.2.2.1. Layer settings

The AutoCAD interface directly uses the settings from the Autocad DWG 2D settings dialog.

Example:

  1. Load the desired part in PARTdataManager.

  2. Create the desired derivation.

    Autocad DWG 2D

    Autocad DWG 2D

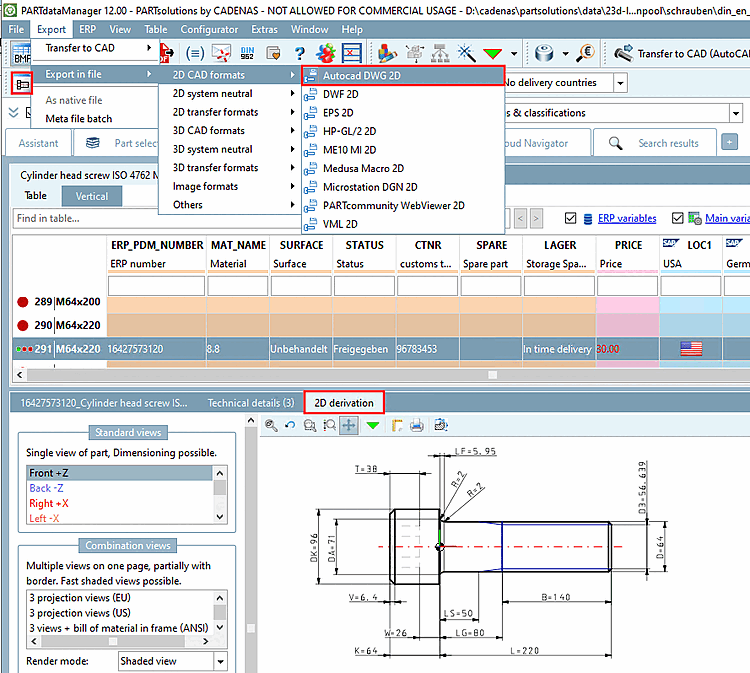

  3. Select the Autocad DWG 2D option in the Export menu under Export to file [Export in file] -> 2D CAD formats.

    -> The same-named settings dialog is opened.

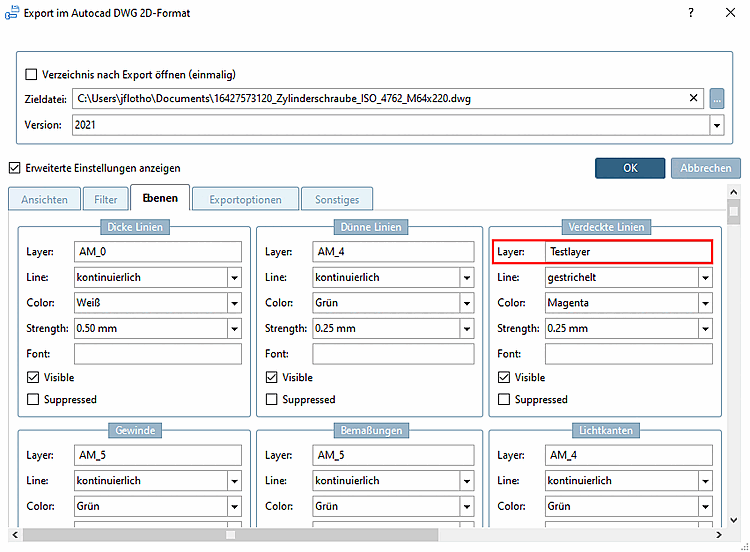

  4. In this example, the layer name under Hidden lines [Hidden Lines] is set to "Test layer".

  5. Transfer the part to AutoCAD.

    Transfer to CAD (AutoCAD)

    Transfer to CAD (AutoCAD)

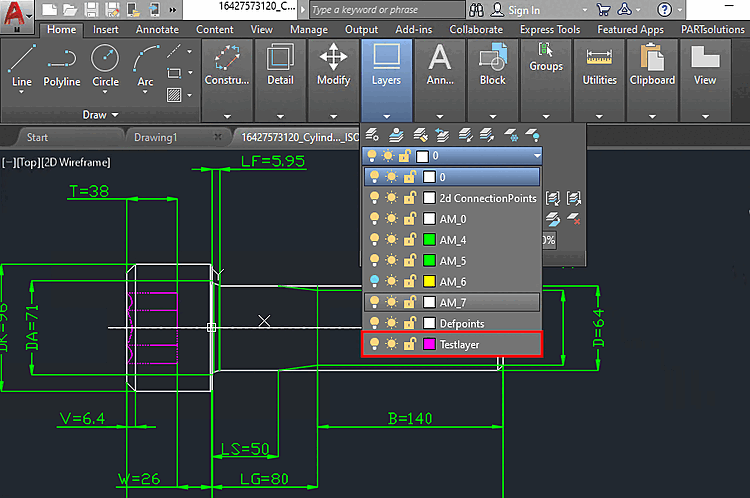

  6. In AutoCAD, open the layer options.

    -> The settings have been applied.
