7.9.3.7.2.  Circle through 3 points

Circle through 3 points [Circle through 3 points]

Determine circle via three points (free points, end points of a line, center of a circle, etc.)

  1. Select first point [Select first point]

  2. Choose second point [Choose second point]

  3. Select the third clamping point [Choose third point]: Use the mouse to drag the circle to the desired radius and fix the circle by clicking on it.

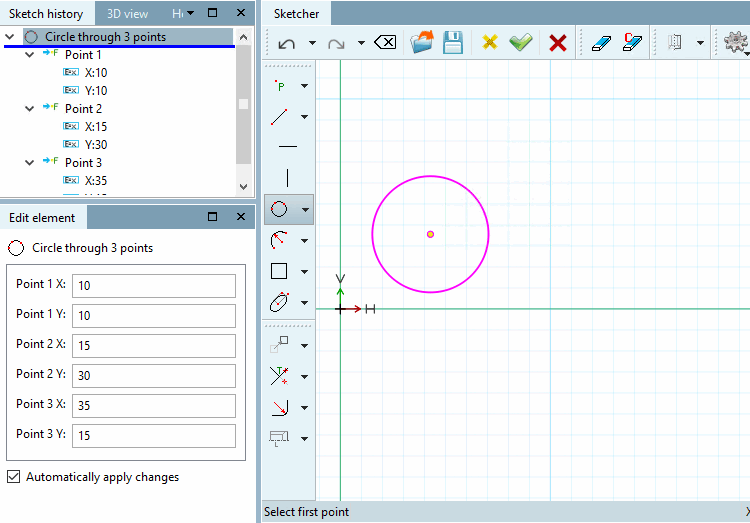

  4. If necessary, adjust the values of the points in the Edit element docking window.
