2.3.1.2.  Attribute mapping in AutoCAD

2.3.1.2.1. Block [AttributeMapping(is2d)]
2.3.1.2.2. Block [BomNormalAttributes] - Define BOM list attributes
2.3.1.2.2.1. Adjust BOM list attributes

PARTsolutions variables and all fields in the link database (if a connection exists) can be exported to an AutoCAD via attribute mapping.

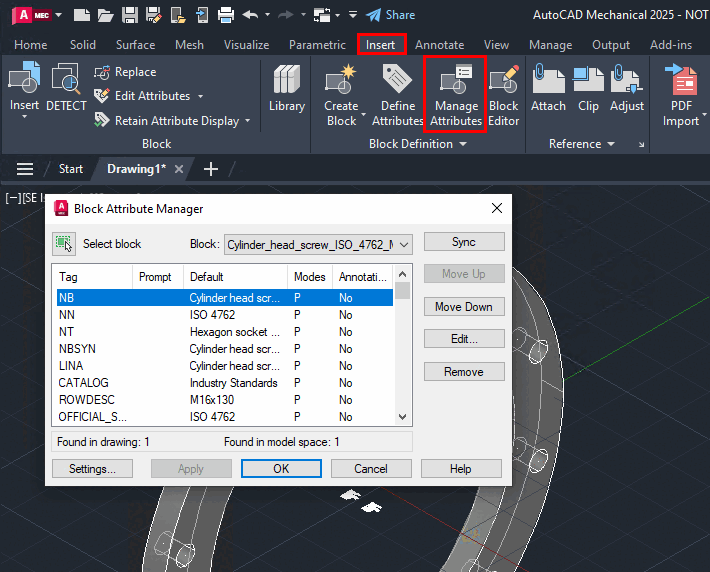

These are then available on the Block Attribute Manager dialog page and in the parts list.

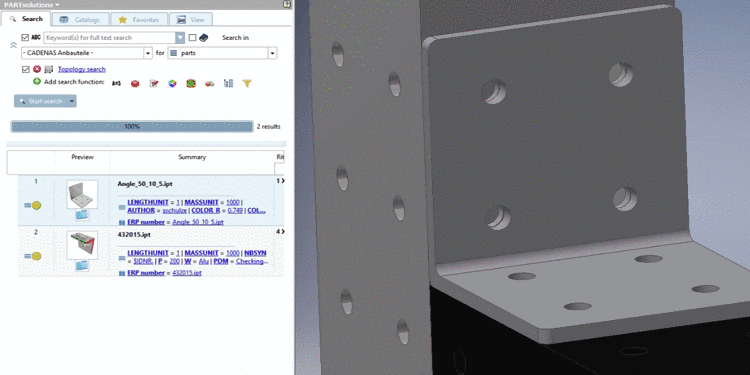

PARTsolutions standard attributes

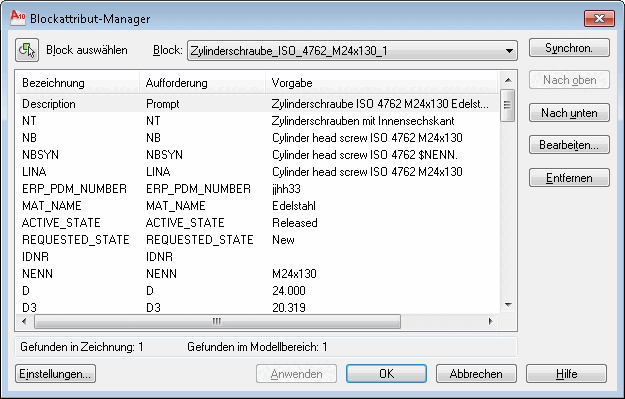

PARTsolutions standard attributes

Attribute mapping is controlled via the following blocks:

  • AttributeMapping(is3d) - initialization of blocks and definition of language of PARTsolutions standard attributes - see AttributeMapping(is2d)

  • AttributeMapping(is2d) - Initialization of blocks and definition of the language of PARTsolutionsstandard attributes

  • BomNormalAttributes - Specification of attribute values of certain attributes

The following describes the single blocks:

[Note]Note

In order to edit the settings, admin rights are needed!
