7.6.4.6.  Mirror

[Note]Note

Applying mirrors [Mirror] creates dependencies, so there may be no easy "back". Please note the dependencies when deleting automatically generated plans.

To mirror a component on a base plane, call up Mirror -> on . .. plane via the context menu.

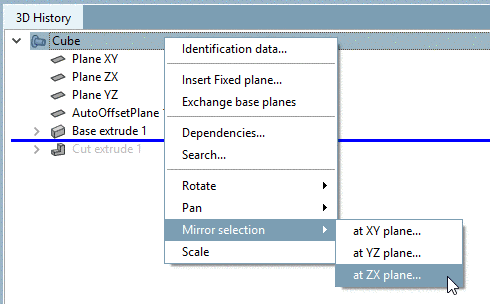

Mirroring at ZX plane

Mirroring at ZX plane

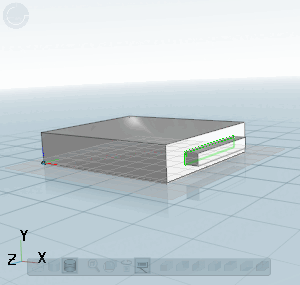

Before mirroring at plane ZX

Before mirroring at plane ZX

Offset 0

Offset 0

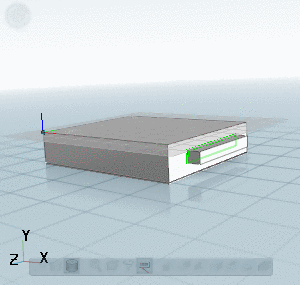

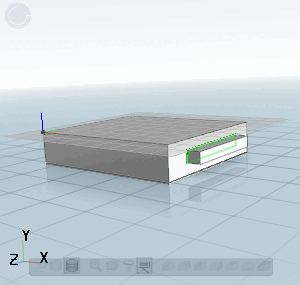

After mirroring at plane ZX

After mirroring at plane ZX

If you also want to set an offset, enter the desired value under Offset field.

Offset 10

Offset 10

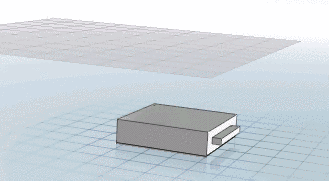

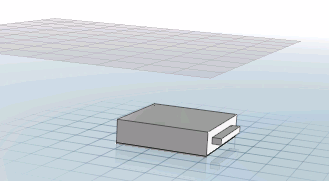

Mirroring with offset

Mirroring with offset
