In the AttributeMapping(is3d) block, you determine whether the PARTsolutions standard attributes (geometric, NT, NN, LINA, etc.) and all fields of the link database (if there is an ERP link) should be transferred to the CAD system and, if so, in which language(s).

Below you will find the most important information for your CAD system. Basic information on attribute mapping can be found under Section 2.2.8, “Attribute mapping ”.

Once the attributes have been transferred, they are then available under iProperties and in the parts list.

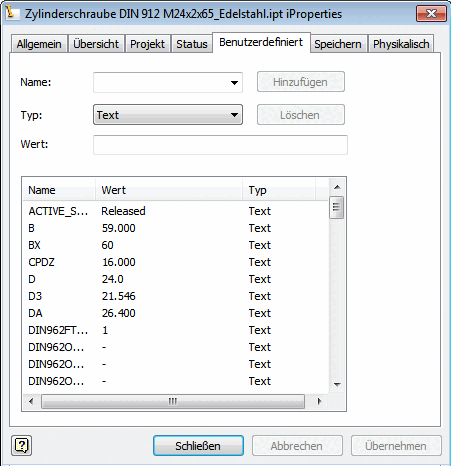

Inventor iProperties: "User-defined" tabbed page

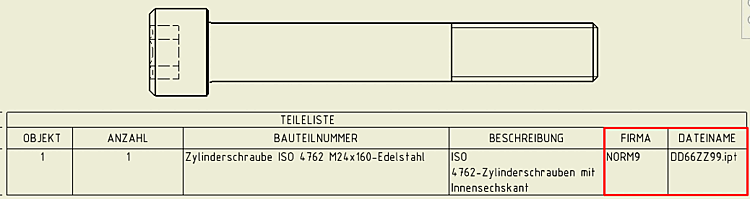

BOM list standard attributes enhanced with "COMPANY" and "FILE NAME"

Attribute mapping is controlled via the following blocks:

In the following the single blocks are explained:

	Note
	In order to edit settings, admin rights are required!
