1.3.10.3.4. Settings

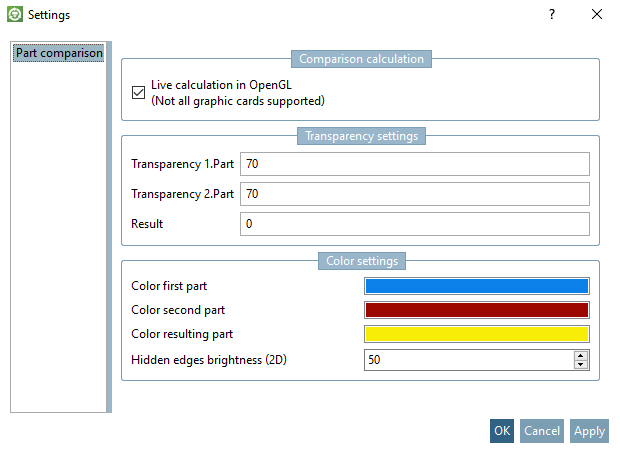

Settings: Click on the icon icon opens the corresponding dialog window.

  • Comparative [Comparison calculation] calculation:

    Live calculation in OpenGL (not all graphics cards are supported) [Live calculation in OpenGL (Not all graphic cards supported)] (activated by default)

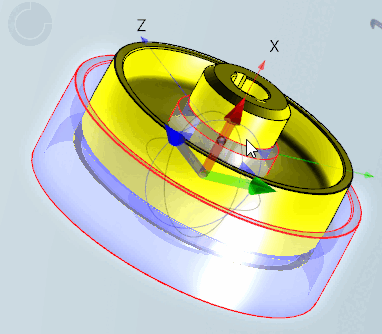

    In overlaid parts, comparison operations are calculated in live time during movement.

  • Transparency settings:

    The transparency settings [Transparency settings] are used in the 3D view.

    • Transparency 1.Part

    • Transparency 2.Part

    • Result

    In the input fields, enter desired value for transparency (0 to 100 [invisible]).

  • Color settings:

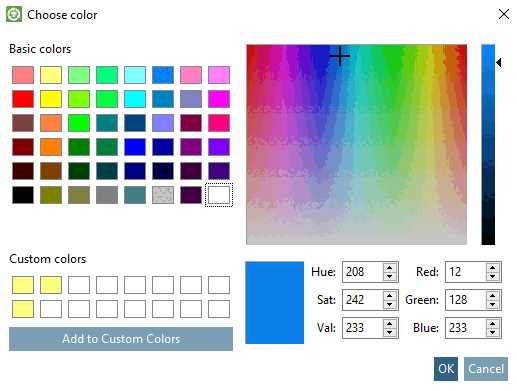

    Clicking in the color field opens the Select color [Choose color] dialog box.

    Select color [Choose color] dialog box

    Select color [Choose color] dialog box

    Select the desired color and confirm with OK.

    • Color first part

    • Color second part

    • Result

    • Brightness of hidden edges ( 2D) [Hidden edges brightness (2D)]:

      The setting is used in the 2D comparison.

      In order for "Hidden edges" not to interfere with the overall appearance, the brightness is set to 50% by default.
