1.4.3.3. Tabbed page "Protocol"

Should there be displayed an error message in relation with licenses (during opening a part in PARTdataManager for example, see following figure), you can display a protocol, which will inform you about the type of error.

The protocol is also written, when there has not been displayed an error message yet.

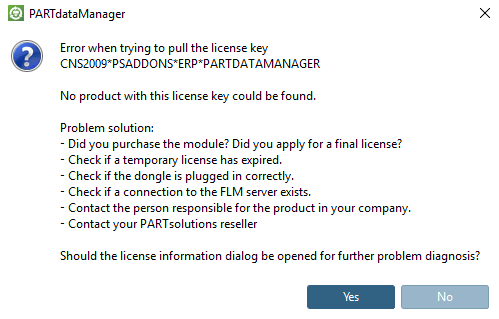

Example: Error message

Example: Error message

-> You can view the log in the license management [License administration] on the Log [Protocol] tab page.

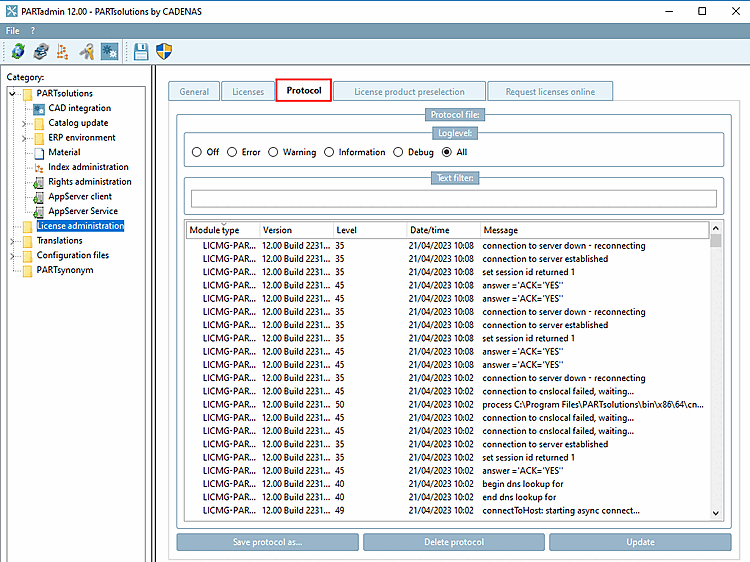

Protocol " tab page

Protocol " tab page

Loglevel:

To define an individual log level, select the desired option in the Log level [Loglevel] dialog area:

  • Off

  • Error

  • Warning

  • Information

  • Debug

  • All

  • Save log as [Save protocol as...].. ...saves the log as a text file to any storage location. To correct license errors, this file can be analyzed by CADENAS support staff.

  • Delete log [Delete protocol]: ... deletes the current log.

  • Update: ... updates the log to the current status.
