1.2.9. CAD/PDM specific characteristics

  • Solid Edge

    In Solid Edge, the STP unit is always user-defined, regardless of the unit in the documents to be imported.

    Please set the correct unit manually.

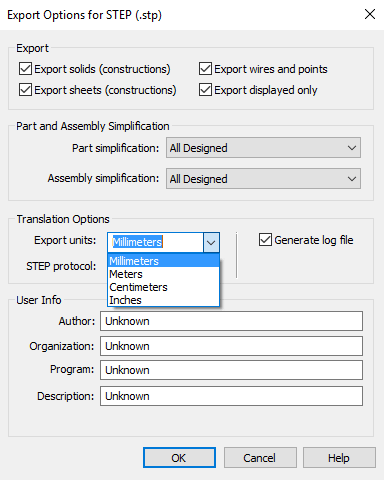

    Solid Edge setting options -> Export units

    Solid Edge setting options -> Export units

  • NX/Teamcenter

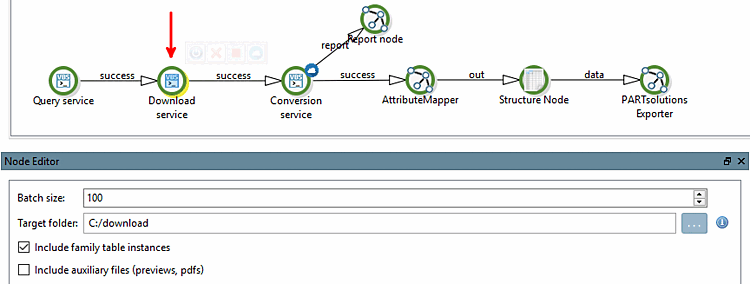

    If the pipeline is executed locally, i.e. without PARTapplicationServer, then please select a value for Download Service in the node editor [Node Editor] under Batch size in the amount of the parts to be processed.
