2.3.9.4. Attribute mapping in Solid Edge

2.3.9.4.4. Block [ProjectInformation]

Attributes that are declared in the [ProjectInformation] block appear in Solid Edge on the Project tab page.

Document Number=?_ATTR("NB")
ProjectName=?"xxx"
Revision=?"xxx"

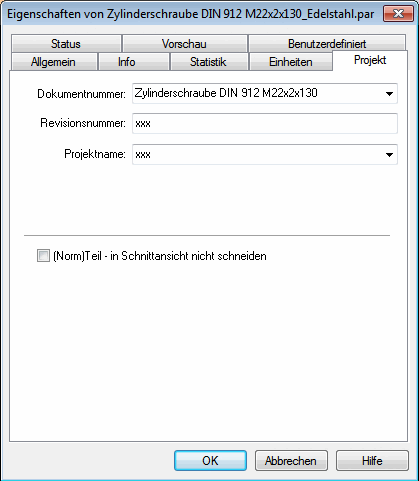

File properties -> tabbed page "Project"

	Note
You want to apply more or other attributes than the ones already existent in the user interface? More information can be found under Section 2.3.9.4.6, “Fill more fields in Solid Edge with PARTsolutions attributes ”. General information on creating keys can be found at Section 1.6.1.4.3, “Editing blocks, keys and key values”.

Note

You want to apply more or other attributes than the ones already existent in the user interface?
