1.3.5.8.3.1.  Port configuration " tab page

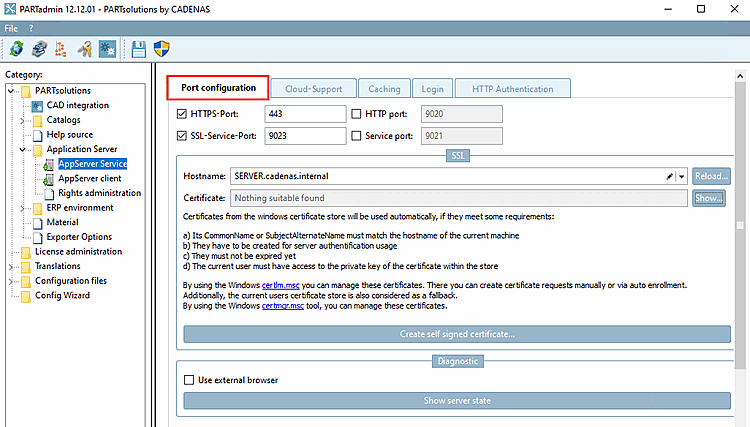

Port configuration " tab page

Port configuration " tab page

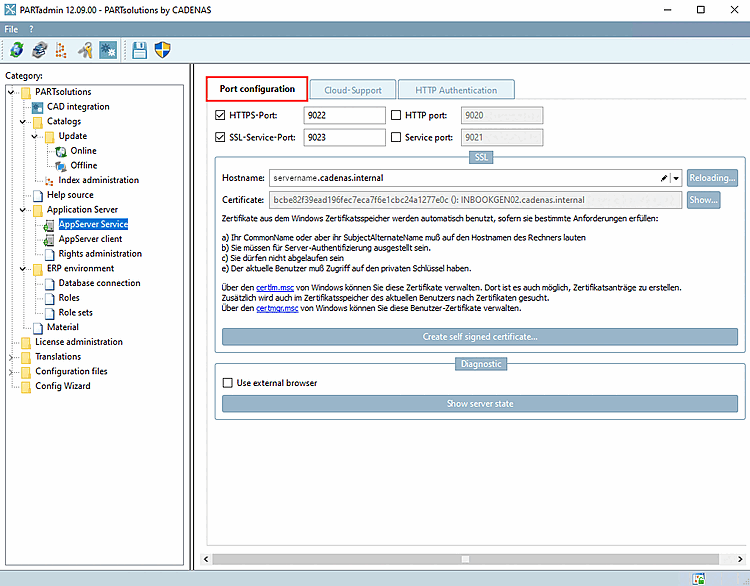

Communication between client and server can be encrypted and/or unencrypted (normally either or). Determine the mode by activating the respective checkboxes.

  • Unencrypted communication

    HTTP port and service port [Service port] are the standard ports without SSL encryption.

    • HTTP port: 9020 (default) [used for file system]

    • Service port: 9021 (default) [used for index and search]

  • Encrypted communication

    Use HTTPS port [HTTPS-Port] and SSL service port [SSL-Service-Port] for SSL encryption.

    • HTTPS port [HTTPS-Port]: 9022 (default): When activated, the SSL dialog area is activated.

    • SSL service port [SSL-Service-Port]: 9023 (default): When activated, the SSL dialog area is activated.

    Detailed information on SSL encryption can be found under Section 1.3.5.8.3.4, “SSL encryption ”.
