In the AttributeMapping(is3d) block, you determine whether the PARTsolutions standard attributes (geometric, NT, NN, LINA, etc.) and all fields of the link database (if there is an ERP link) should be transferred to the CAD system and, if so, in which language(s).

Below you will find the most important information for your CAD system. Basic information on attribute mapping can be found under Section 2.2.8, “Attribute mapping ”.

Once the attributes have been transferred, they are then available on the file information dialog page and in the parts list.

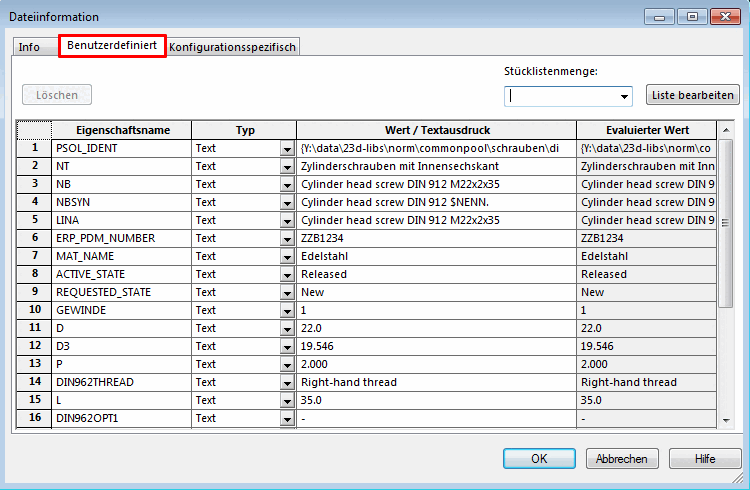

"File information" -> tabbed page "Custom"

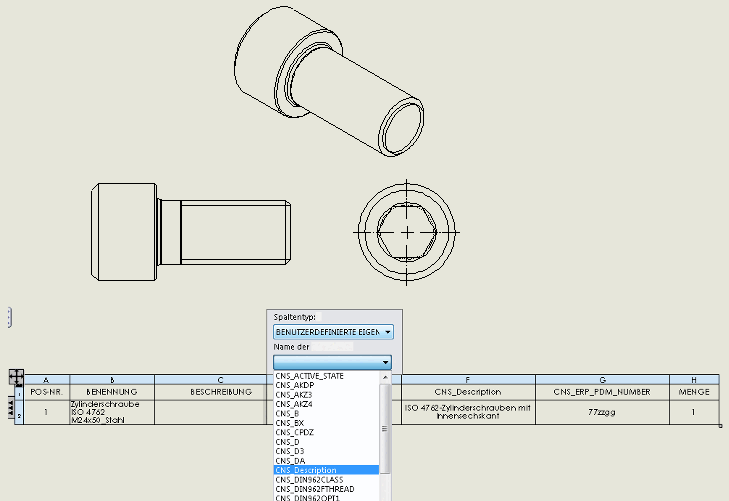

PARTsolutions attributes in the BOM list table

Attribute mapping is controlled by the following blocks:

The following describes the individual blocks:

	Note
	Administrator rights are required to edit the settings!
