7.13.6.2. Context menu of assembly

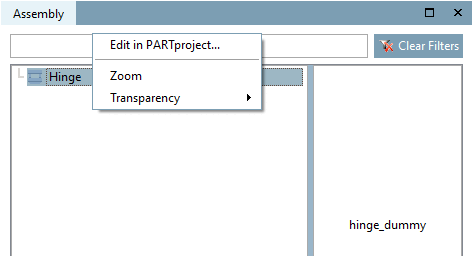

The context menu commands Edit in PARTproject [Edit in PARTproject...]..., Snap [Zoom] and Transparency are available at assembly level. The dummy start part can be selected on the right-hand side of the dialog.

  • Edit in PARTproject [Edit in PARTproject...]...: The view changes to PARTproject and the desired project is selected.

  • Snap [Zoom]: The display of the assembly is adapted to the size of the window.

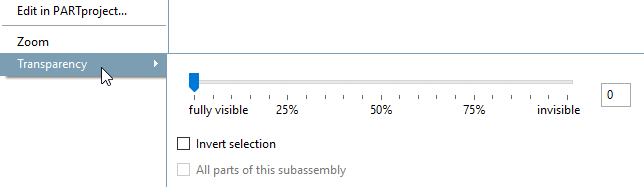

  • Transparency: This option allows you to temporarily hide parts in assemblies and make them visible again for a better overview.

    Part marked

    Part marked

    Marked part transparent

    Marked part transparent
