12.2.2.1. Standard views

12.2.2.1.1. Current view

If you want to transfer the currently set alignment of the coordinate system from the 3D view to the 2D derivation, select the Current view option at the bottom of the list box.

3D view

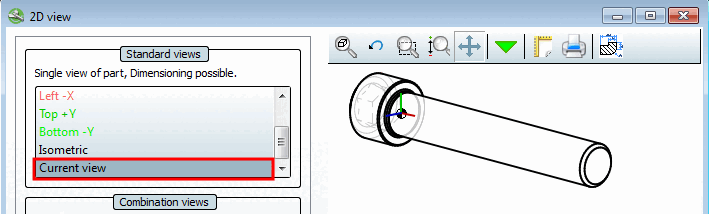

2D derivation - Current view

	Note

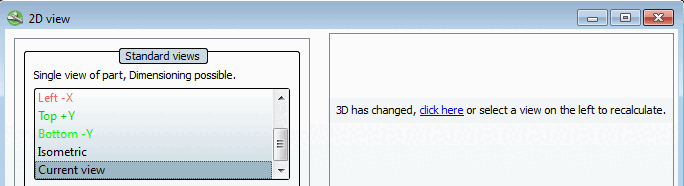

If you switch from the 2D view to the part view [Part view] and select a new variant of the called up part or another object via the part selection [Part selection], simply click on the link on the right.

Note

If you switch from the 2D view to the part view [Part view] and select a new variant of the called up part or another object via the part selection [Part selection], simply click on the link on the right.
