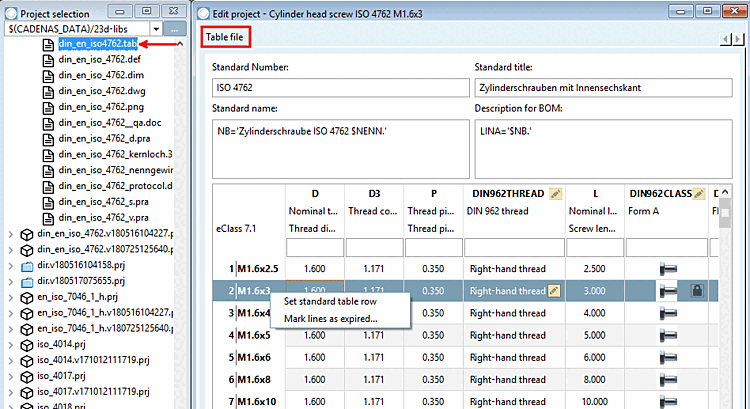

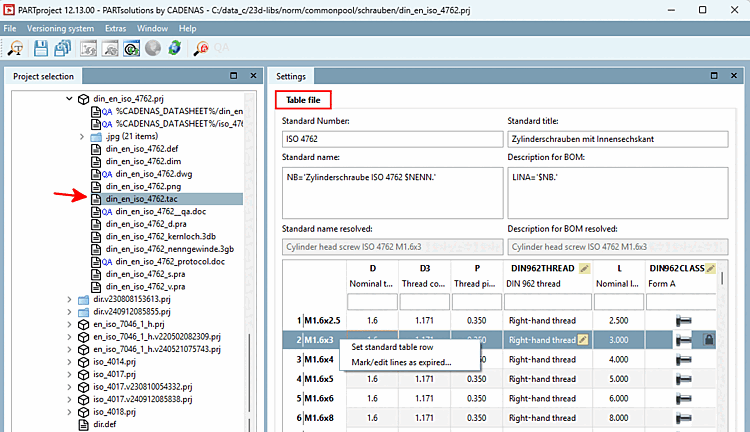

As soon as you select a * .tac or * .tab file in the directory tree on the left under Project selection, the tab page Table file is displayed on the right under Edit project.
Here, following actions can be performed:
Viewing the characteristic attribute table (editing is only possible in PARTdesigner possible)
Editing the standard number [Standard number], standard title [Standard title], standard designation [Standard name] and parts list designation [Description for BOM]
You can edit directly here or use to open the PARTdesigner and then use
to open the Identification data dialog box and edit it there.Details on this can be found under Section 5.9.15.1, “ Set standard table row ”.
Details on this can be found under Section 5.9.15.2, “ Mark lines as expired... ”.
To get direct access to the table, open PARTdesigner. Information on PARTdesigner can be found at Chapter 7, PARTdesigner .
