2.5.4.2.1. Activating the PARTsolutions interface

  1. Application -> Modules

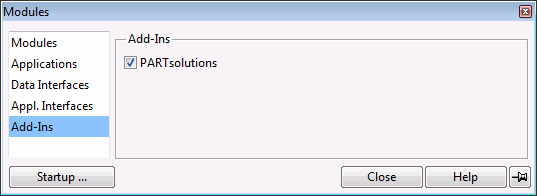

    Open the Modules dialog box and select Add-Ins.

  2. Check the box next to PARTsolutions

  3. Click Close if you want to activate once

    or

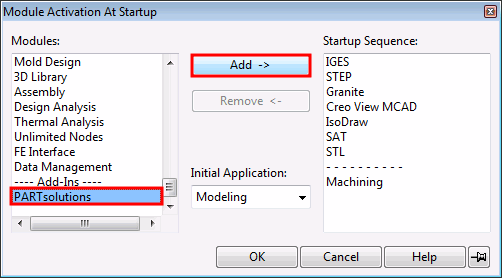

    click Start... if you want to make the activation permanent.

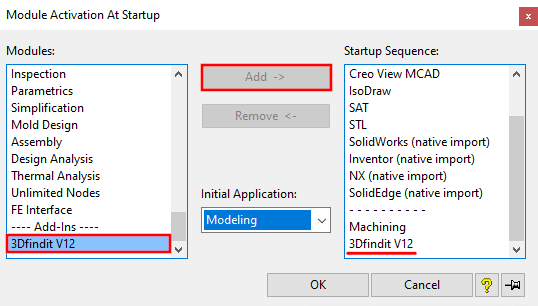

    Add PARTsolutions to the start sequence.

    [Note]Note

    The STL module must be in the start sequence. This is necessary for adding parts to the custom library [User library].

    [Note]Note

    ModelManager / SAP must be placed before PARTsolutions in the start sequence!
